10 Pcs 1/0 Gauge 175A Battery Quick Connect Disconnect with Handle Grey Q745420
10 Pcs 1/0 Gauge 175A Battery Quick Connect Disconnect with Handle Grey Q745420
Simple Installation - Fits 1/0 Awg cable; Capacity 175 Apm. Just put the cable in terminal (DIA: 0.433 inch), solder or crimp them, then slide them into the back of plug and lock in place

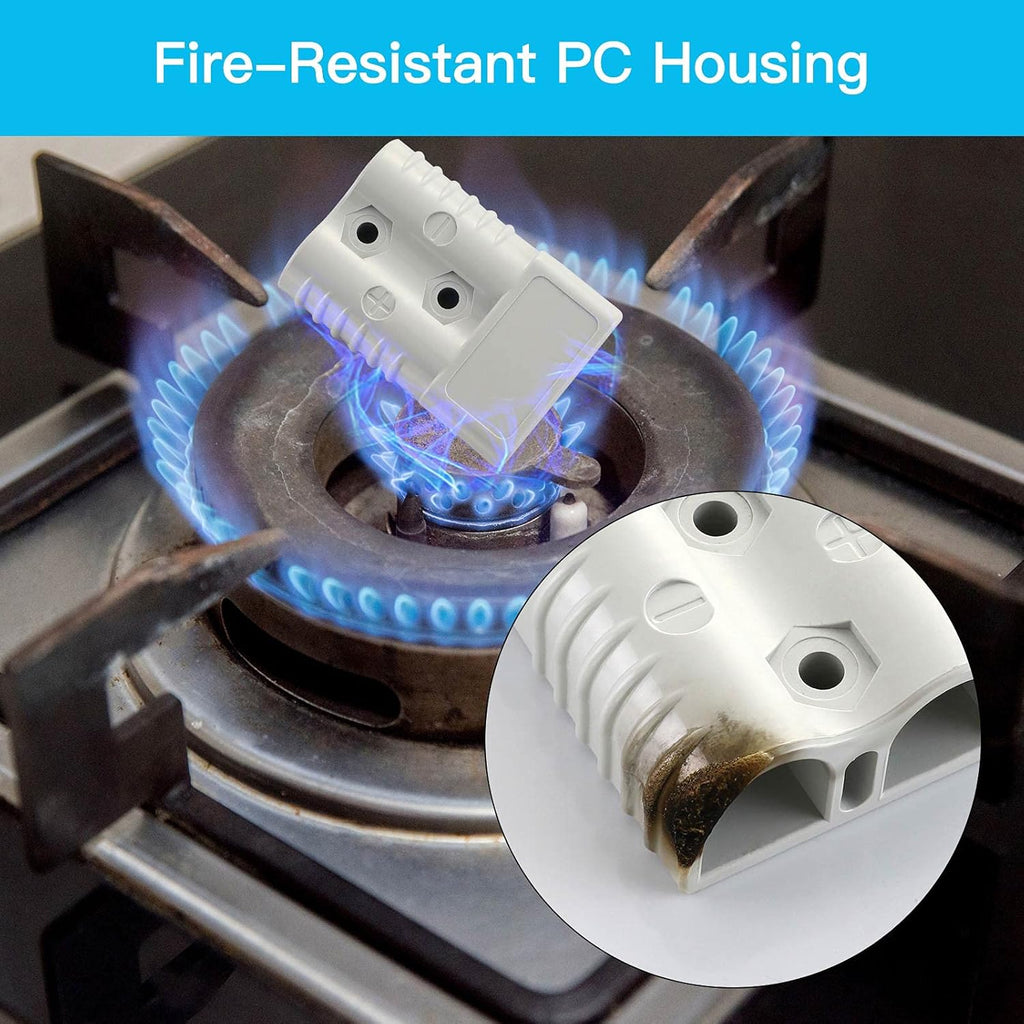

PC Housing - The shell of the battery quick connector made of PC materials, which makes it sturdy and reliable with the perfect continuity and fire-retardant to bad environment

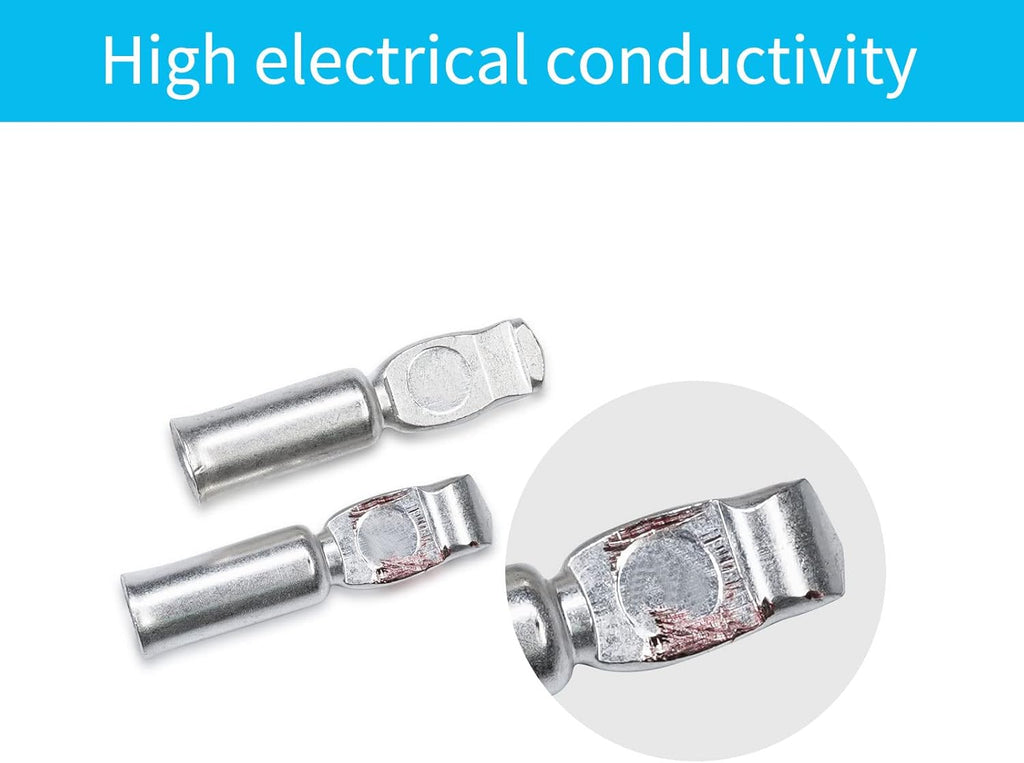

High Conductivity - The terminal of these winch battery quick connect are made from silver plated copper, it has strong high conductivity also keep a stable voltage and current
Wide Application - Our battery quick connector provides a simple and convenient method for connect/disconnect power to a winch or other electrical device

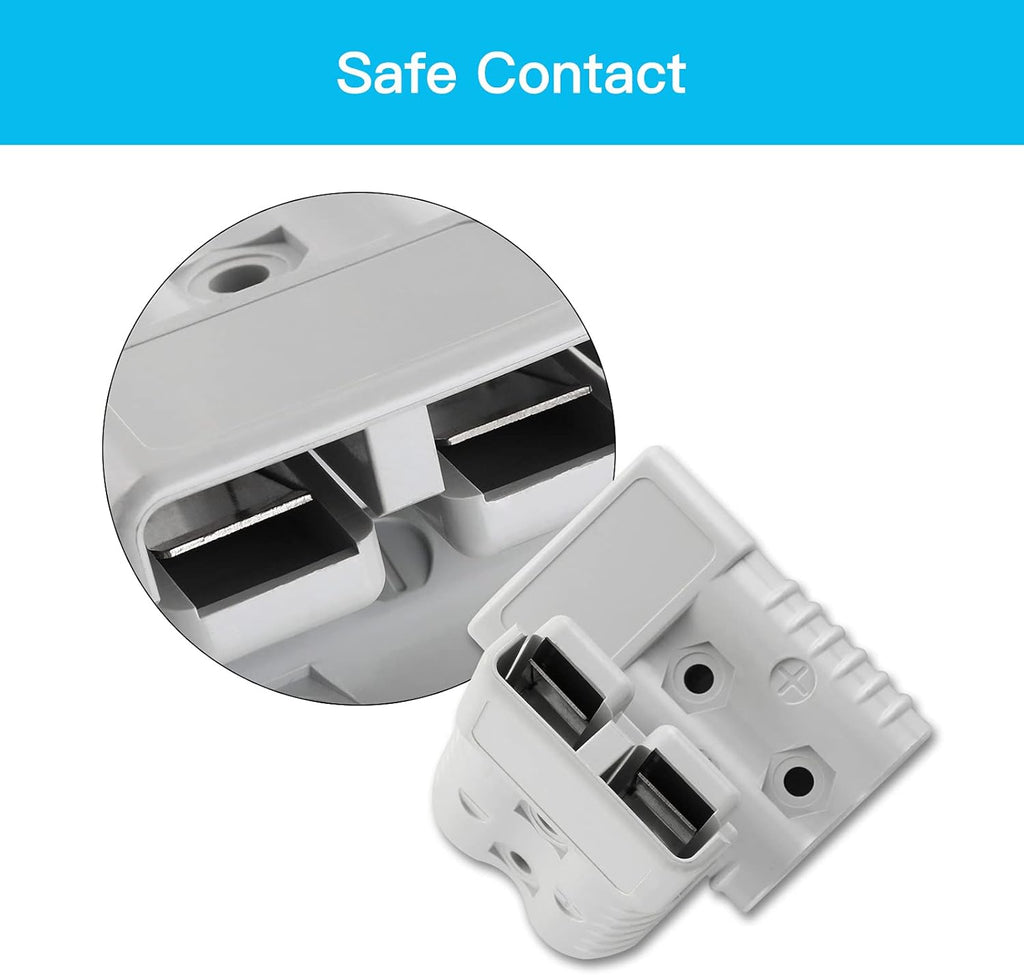

Safe Contact - These battery connectors ends are constructed with Spring steel, that ensures an excellent impact resistance and vibration resistance for the batteries
Features
Connectors feature a one piece PC housing,Genderless design makes assembly quick and easy and reduces number of parts stock.
Using stainless steel springs to hold low resistance contacts in place.

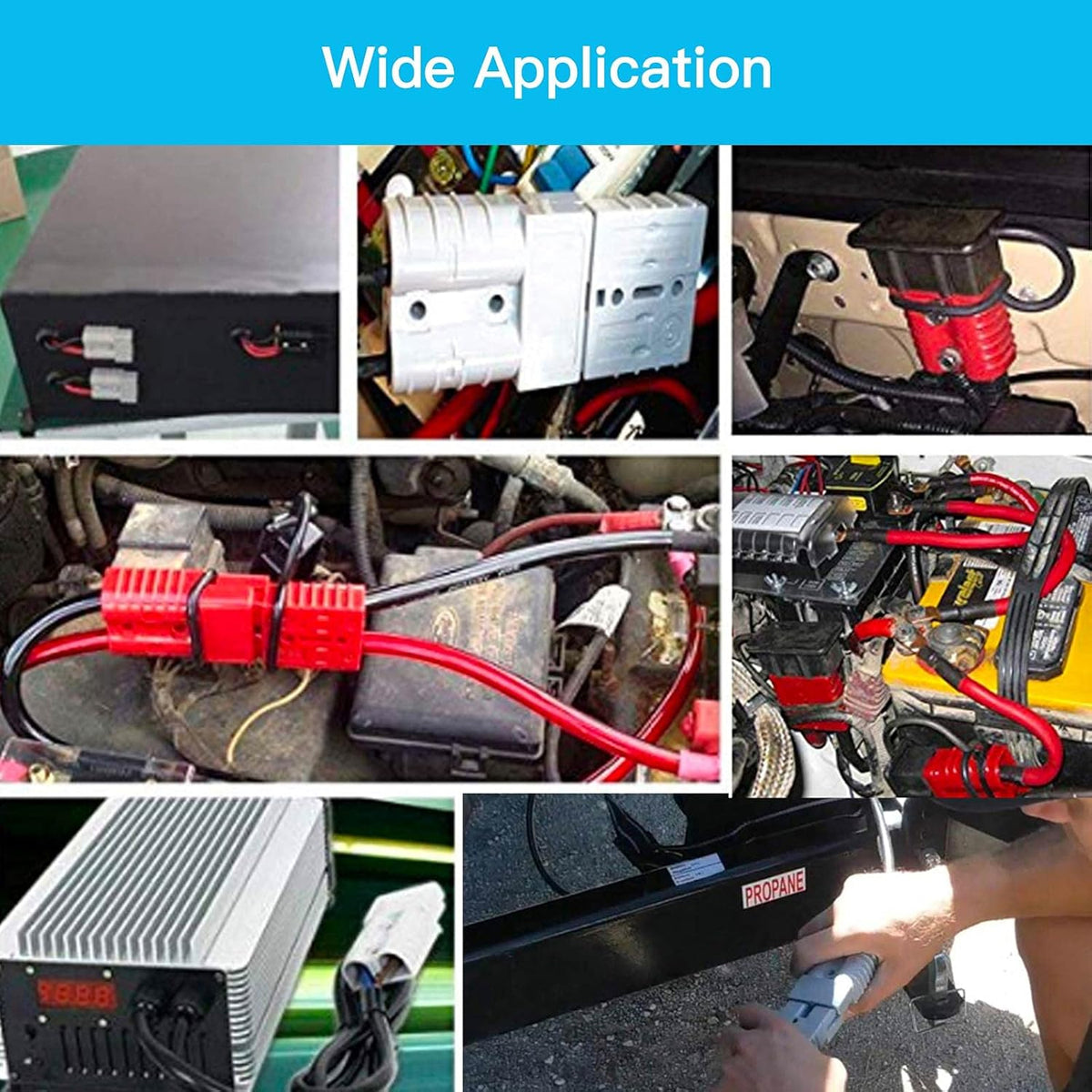

Applications Below
UPS battery packs, automotive winches, forklifts;
Battery chargers, solar panels, wind generators, tow trucks, snow plows;
Farm equipment, jumper booster cables, welding equipment, electric vehicles, fisher plow,etc.
How to Use?
Just insert the cable into the terminal, then solder or crimp them.
Specification
Material:PC
Gauge:1/0 Awg
AMP Rating: AC/DC 175
Voltage Ratings (Volts):600V

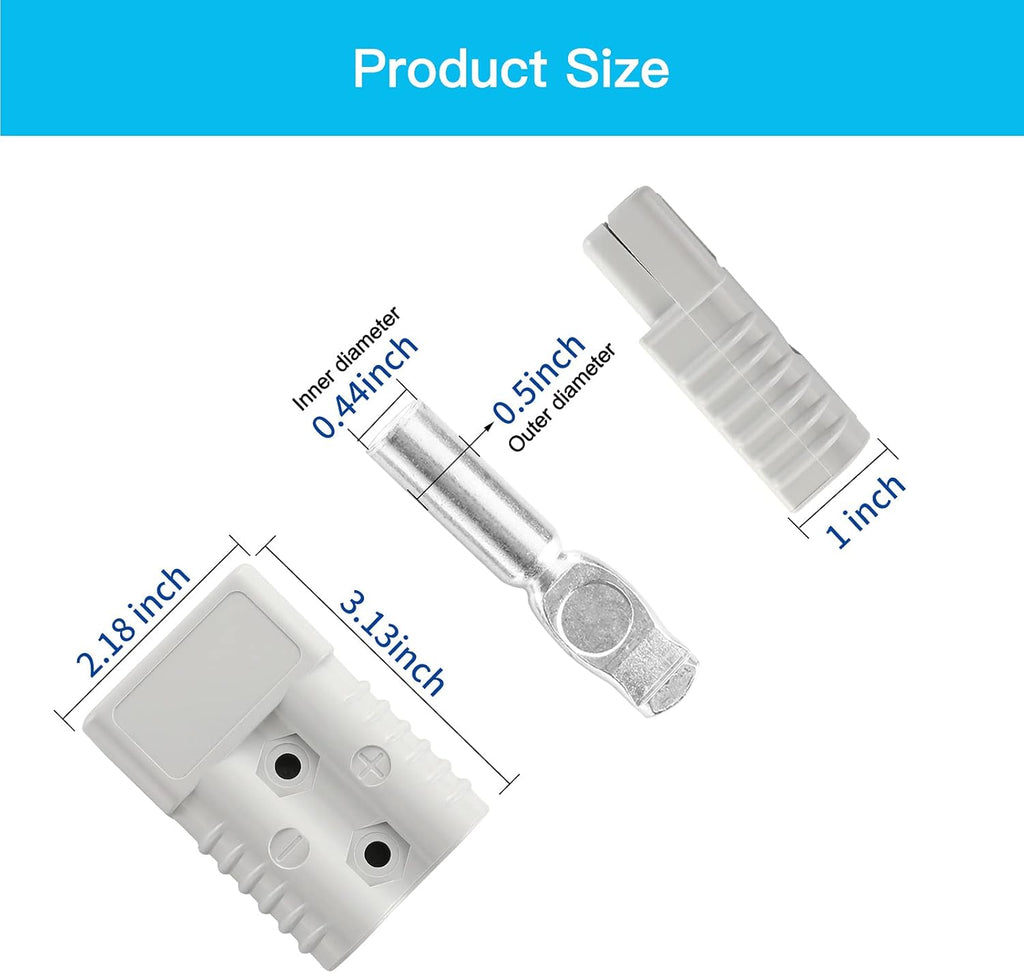

Terminal Diameter: 0.433 inch
Contact/Terminal Material: silver plated copper
Material: PC,Fire rating: 94-V0
Impact Resistance:High
Vibration Resistance:Excellent
Suitable For: UPS battery power connector
Operating Temperature Range:-4°F-221°F / -20°C-105°C
Connect/disconnect Cycles: 10,000 times

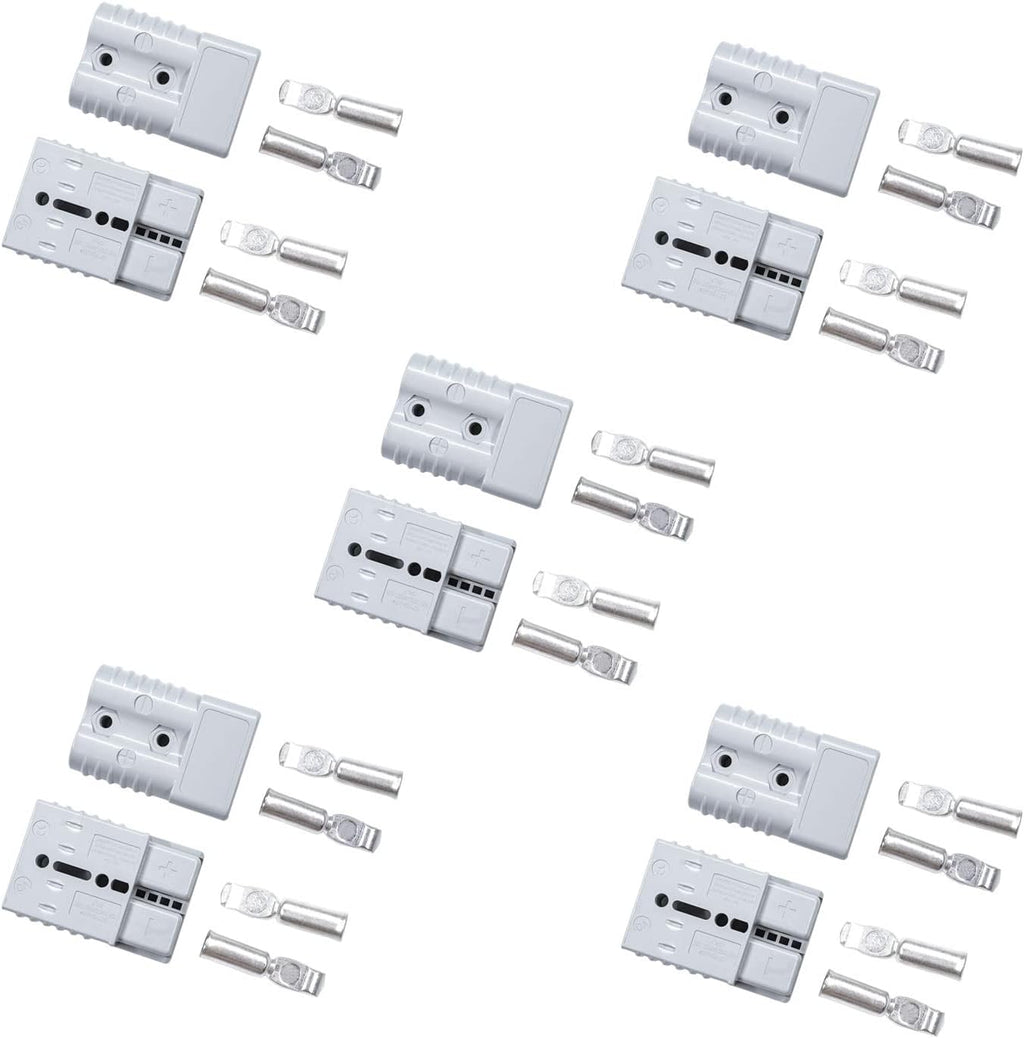

Package Includes
10 x Connectors
20 x Terminals
