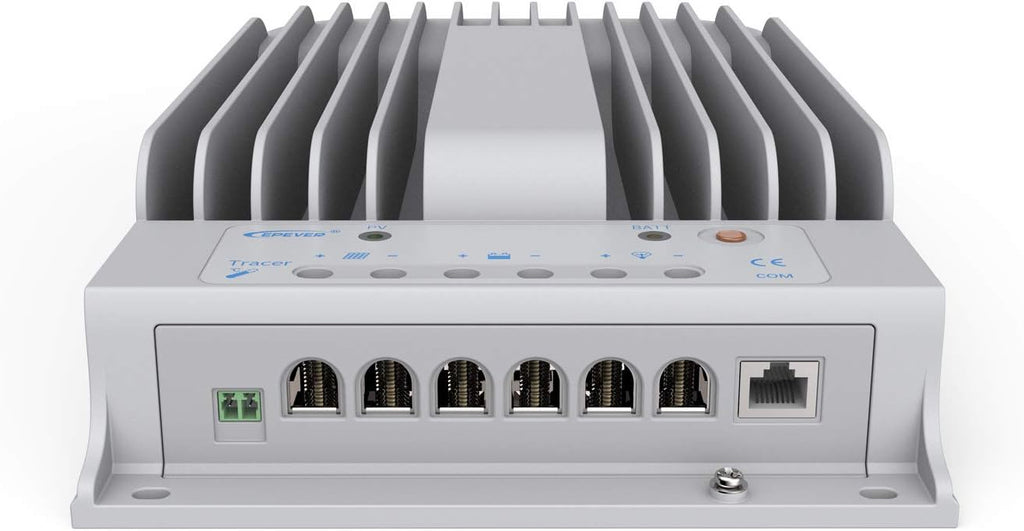

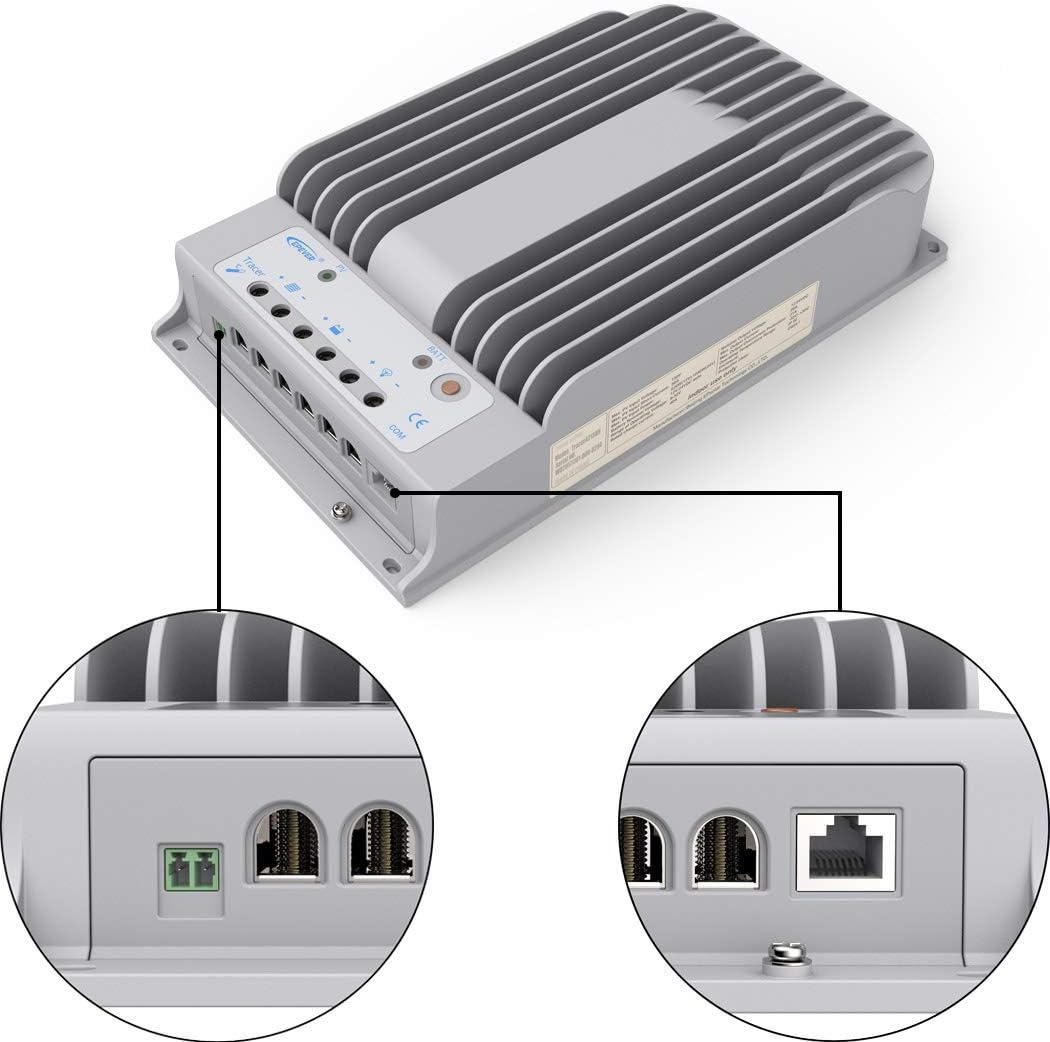

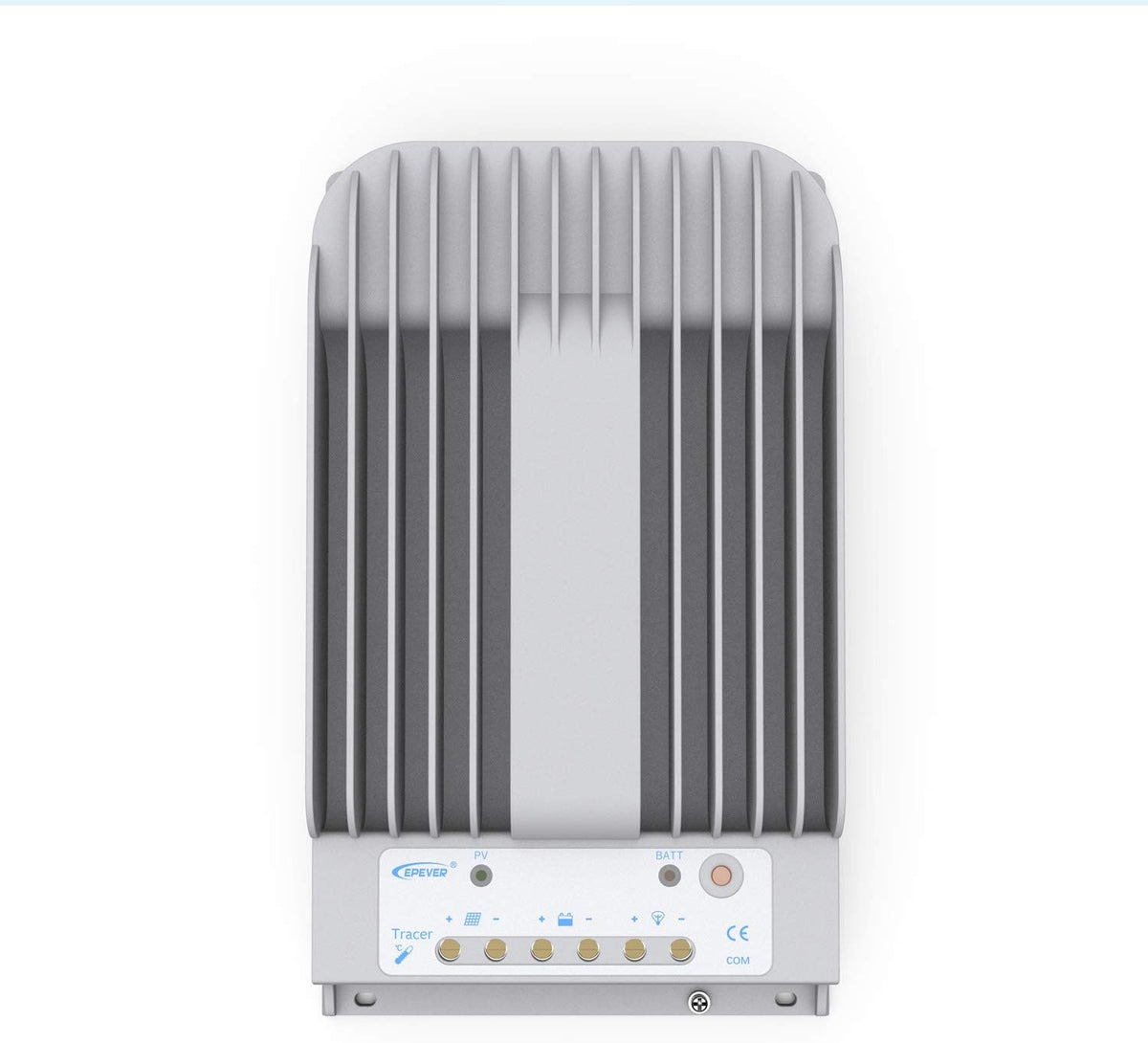

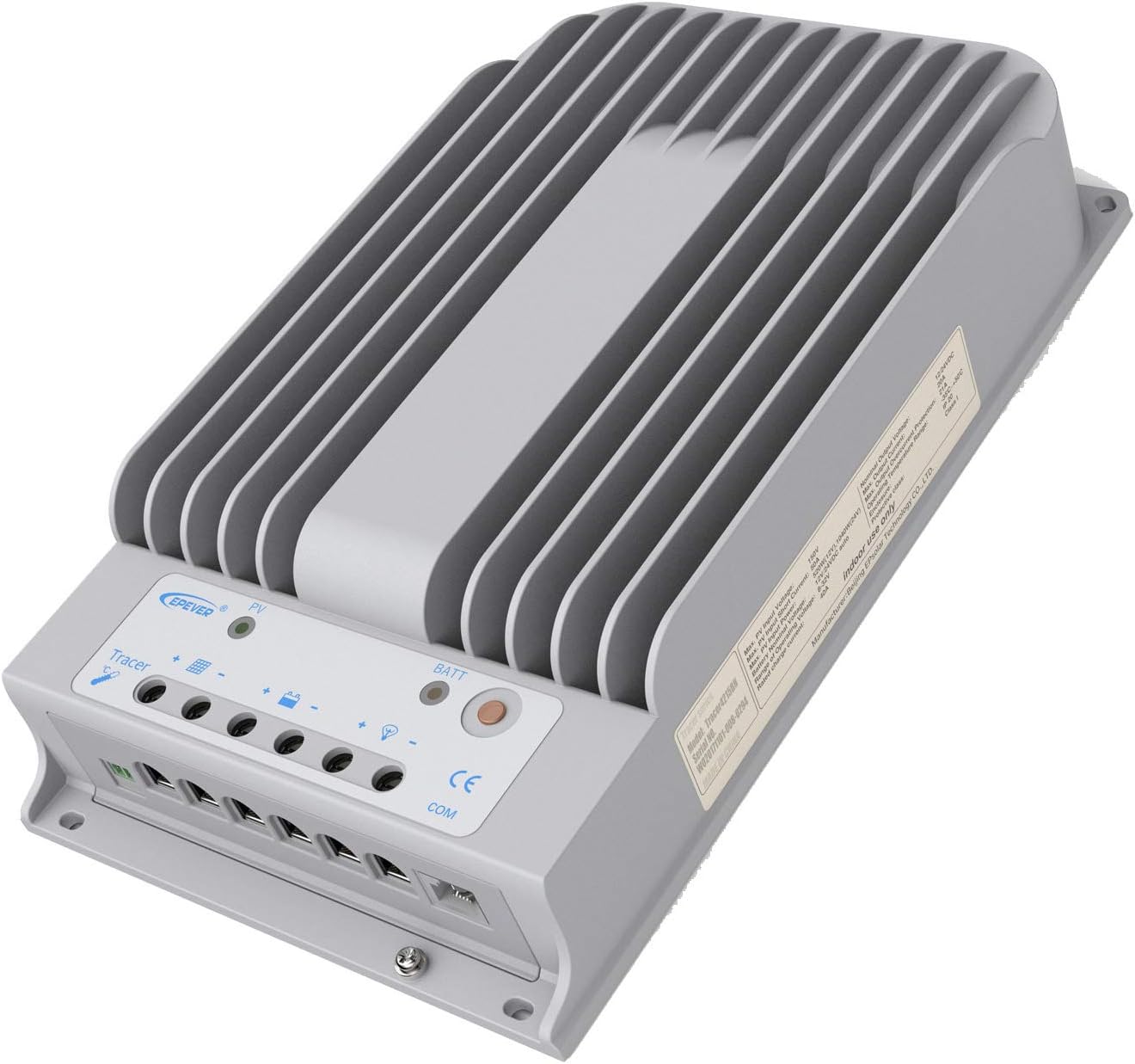

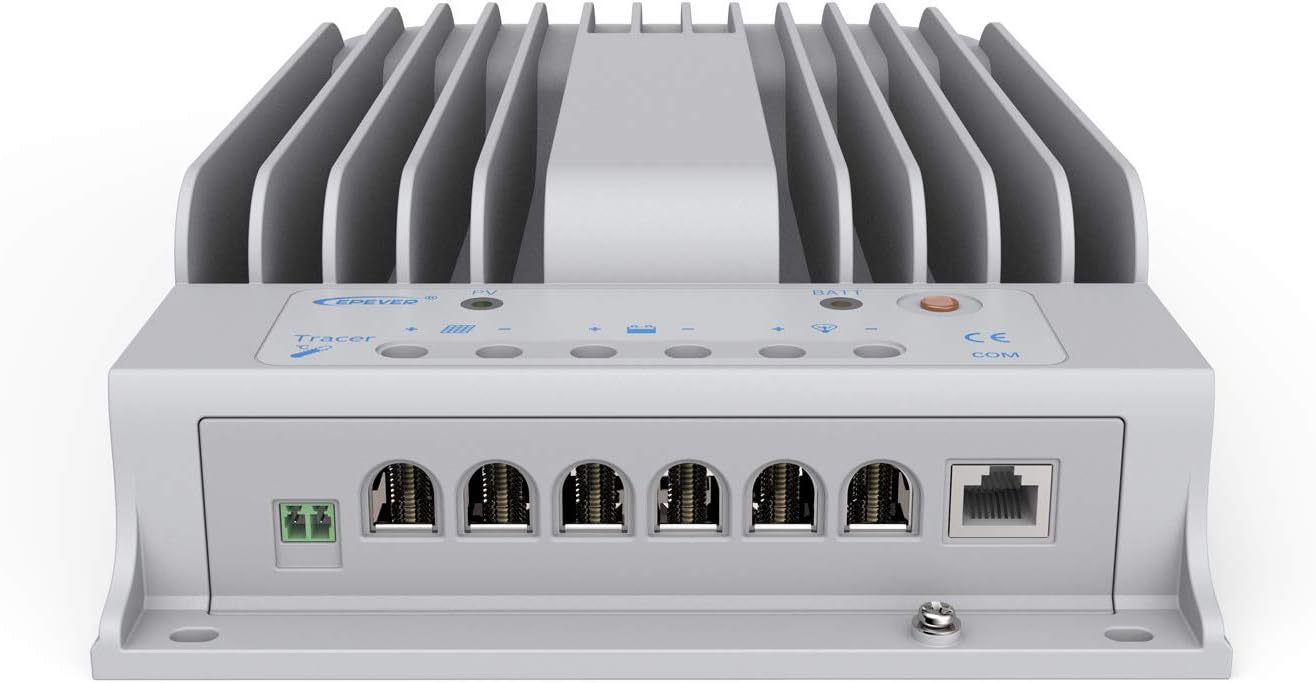

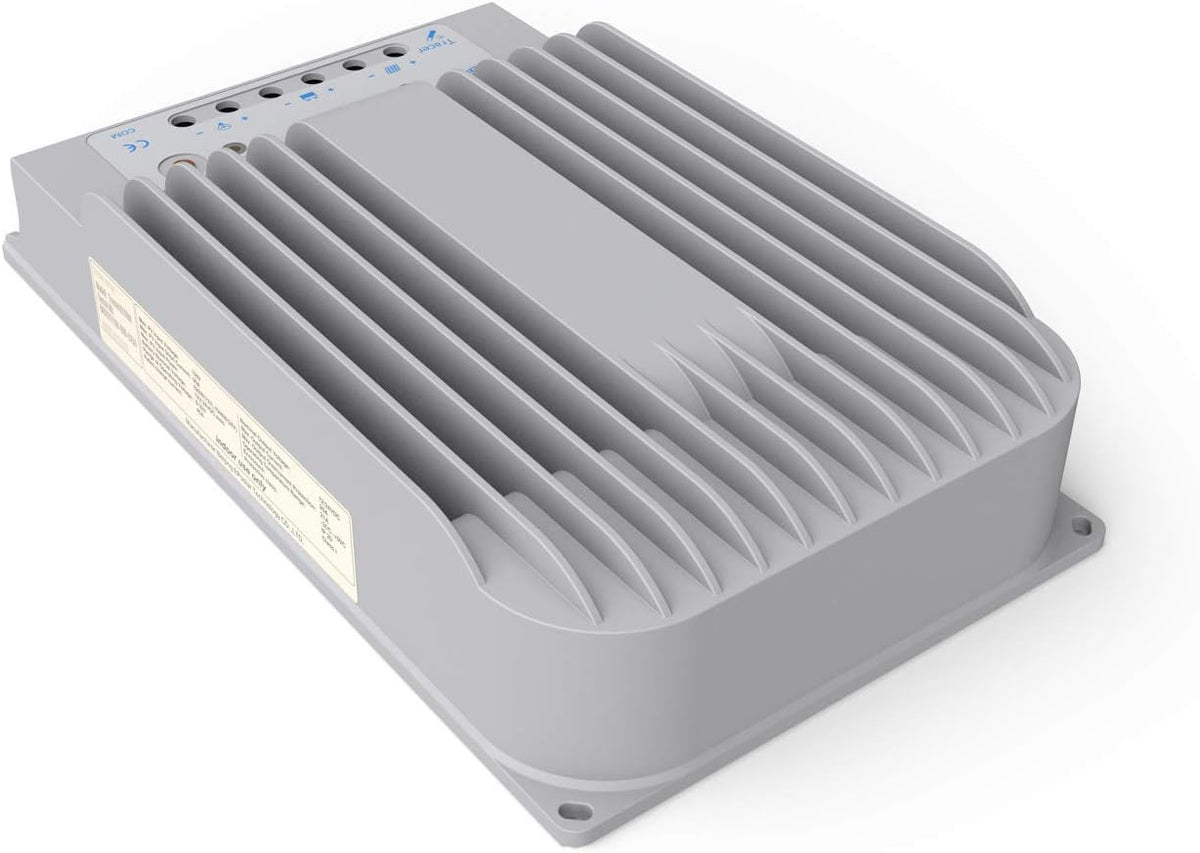

40 Amp MPPT Solar Charge Controller 150V PV Input K793499
Sale price
$24.90
Regular price $98.40
Skip to product information
Negative Ground, Max 150V(Voc) PV input. A higher input capacity will allow you wiring more solar panels in series to minimum pv currentAdvanced maximum power point tracking technology to optimize the solar system. This 40A MPPT solar charger 's tracking efficiency can reach 99.5%Support 4 charging options: Sealed, Gel, Flooded and User-defined. Compatible with AGM batteries, User mode allow you set your own charging parametersOver temperature, over charging, PV and load short, PV (battery) revered, over current protection. Comes with RS-485 communication bus interface, It is Standard MODBUS interfaceThis 40A Charge Controller works with Max 600W Solar Panel Charging a 12v Battery System, or 1200W Panel on 24v Battery System.
40 Amp MPPT Solar Charge Controller 150V PV Input K793499
Sale price
$24.90
Regular price $98.40
Shipping calculated at checkout.
| Tracer 4210AN MPPT 40A | Tracer 5415AN with MT50 Meter | Tracer 6415AN with MT50 Meter | XTRA 4215N MPPT 40A | NS24H60 with MHM80 Meter | |
|---|---|---|---|---|---|
| Max PV Input Volt. | 100V/92V(At 25℃ temperature) | 150V/138V(At 25℃ temperature) | 150V/138V(At 25℃ temperature) | 150V/138V(At 25℃ temperature) | 150V |
| Grounding | Negative Ground | Negative Ground | Negative Ground | Negative Ground | Negative Ground |
| Upper Case Material | Plastic | Plastic | Plastic | Plastic | Plastic |
| Battery Type | Sealed, Gel and Flooded, User and Lithium | 12/24/36/48V Batteries (Lead Acid) and Lithium Battery: LiFePO4/ Li(NiCoMn)O2 | 12/24/36/48V Batteries (Lead Acid) and Lithium Battery: LiFePO4/ Li(NiCoMn)O2 | Sealed, Gel and Flooded, User and Lithium | Sealed, AGM, GEL, Flooded, Custom and Lithium |
| Rated Charge Power | 520W@12V / 1040W@24V | 625W@12V / 1250W@24V / 1875W@36V / 2500W@48V | 750W@12V / 1500W@24V / 2250W@36V / 3000W@48V | 520W@12V / 1040W@24V | - |
| Max. PV Array Power | 780W@12V/1560W@24V(12V or 24V refers to battery voltage) | 937.5W@12V / 1875W@24V / 2812.5W@36V / 3750W@48V | 1125W@12V / 2250W@24V / 3375W@36V / 4500W@48V | 780W@12V/1560W@24V(12V or 24V refers to battery voltage) | 840W@12V / 1680W@24V |
| Max. PV wire size | 16mm2/6AWG | 16mm2/6AWG | 16mm2/6AWG | 16mm2/6AWG | 25mm2/3AWG |
